Driver for RC-Servos

Driver to control the two RC-Servos that can be connected to the VIA ARDUINO MEGA2560 Shield rev. 2.0. More...

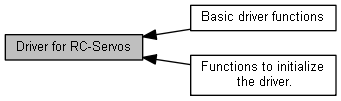

Collaboration diagram for Driver for RC-Servos:

Modules
	Functions to initialize the driver.
	How to initialise the driver.
	Basic driver functions
	Commonly used functions. Here you you will find the functions you normally will need.

Detailed Description

Driver to control the two RC-Servos that can be connected to the VIA ARDUINO MEGA2560 Shield rev. 2.0.

The RC-Servos can be connected to J14 (Servo#0) and J13 (Servo#1) on the VIA ARDUINO MEGA2560 Shield rev. 2.0.

J13/J14 to Servo connections

J13/J14 pin	Servo Cable Wire Color
1	Brown
2	Red
3	Orange
