Driver for the TSL2591 Light sensor. More...

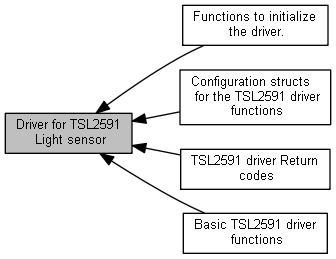

Collaboration diagram for Driver for TSL2591 Light sensor:

Modules
	Functions to initialize the driver.
	How to initialise the driver.

	Basic TSL2591 driver functions
	Commonly used functions. Here you you will find the functions you normally will need.

	Configuration structs for the TSL2591 driver functions
	Commonly used structs.

	TSL2591 driver Return codes
	Return codes from TSL2591 driver functions.

Detailed Description

Driver for the TSL2591 Light sensor.

A little about light. Light is normally measured in LUX. Indoor and outdoor light conditions:

LUX	Condition
0.002 lux	Moonless clear night sky
0.2 lux	Design minimum for emergency lighting (AS2293)
0.27 - 1 lux	Full moon on a clear night
3.4 lux	Dark limit of civil twilight under a clear sky
50 lux	Family living room
80 lux	Hallway/toilet
100 lux	Very dark overcast day
300 - 500	lux Sunrise or sunset on a clear day. Well-lit office area
1,000 lux	Overcast day; typical TV studio lighting
10,000 - 25,000 lux	Full daylight (not direct sun)
32,000 - 130,000 lux	Direct sunlight

The Data-sheet for TSL2591 can be found here TSL2591 Datasheet - June 2018

The implementation works with interrupt, meaning that there are no busy-waiting involved.

Note: This driver are using a call-back function to inform about completion of many of the driver functions. It is described in the individual functions documentation if the function will call the call-back function on completion.; Dependent on TWI-Driver.
